1. Application

CQC1 (CAC1)series contactors are suitable for using in circuit of frequency 50/60Hz, rated insulation voltage up to 660V, rated operation current 9~95A under AC-3 duty. It is mainly used for making/breaking electric circuits at a long distance for frequent starting/stopping & controlling AC motors. It is used in combination with a thermal relay to compose of a magnetic motor starter.

Standard Number：GB14048.5、IEC60947-5-1.

2. Type designation

3. Working and the installing condition.

1. Ambient air temperature:-5℃~+40℃， average temperature of 24 hours must below +35℃

2. Altitude:≤2000m

3. Relative humidity: The maximum temperature of 40 degrees,the air relative humidity not exceed 50%,at a lower temperature can allow for a higher relative humidity.The humidest month's average lowest temperature must be below 25℃， the max relative humidity of that month should not exceed 90%.If humidity changes as a result of occasional gel generated,should eliminate it.

4. Pollution level: 3

5. Installation category: III

6. Installation position: The installation degree of the tilt and vertical plane should not exceed ±5°.

7. Shock vibration:Products should be installed and used without significant shake, shock and vibration place.

4. Overall and Mounting dimensions (mm)

4.1 Technical data

Mark 1

4.2 Coil voltage of contactor and code of it Mark2

Mark 2

5. Notes

Mark 3 Derived Products When The Contactor is Assembled With Following Accessory Module

Mark 4

Mark 5

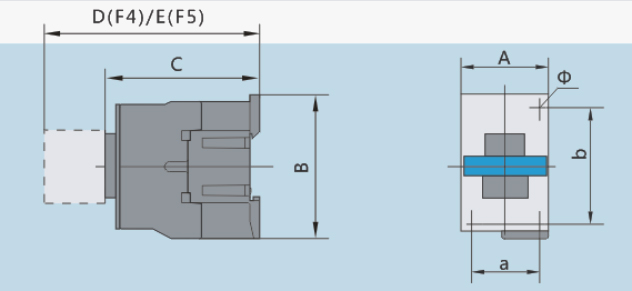

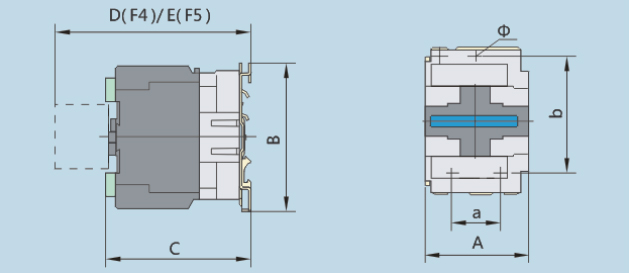

6. Appearance and installing size

CQC1-40(95)

CQC1-09(32)

Mark 6
