1. Application
MX shunt tripping device is mainly used for AC 50Hz, rated voltage 230V line and CQB5a series circuit breaker equipped with long distance shunt tripping operation.
Standard Number：GB14048.5、IEC60947-5-1.
2. Technical data
Model | Versions |
Rated voltage of control power supply Us | AC 230V 50Hz |
Rated insulation voltage (Ui) | 415V |
Operation property | （70%~110%）Us，the release reliably operates to break the circuit breaker |
Life(operations) | 4000 |
3. Working and the installing condition.
3.1 Ambient temperature：-25℃~+50℃
3.2 Relative humidity：≤90%/20℃，≤50%/40℃
3.3 Altitude is no more than 2000m

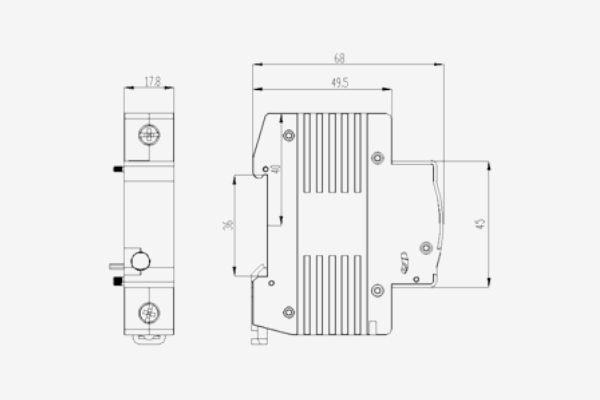

4. Overall and Mounting dimensions (mm)
